Product description

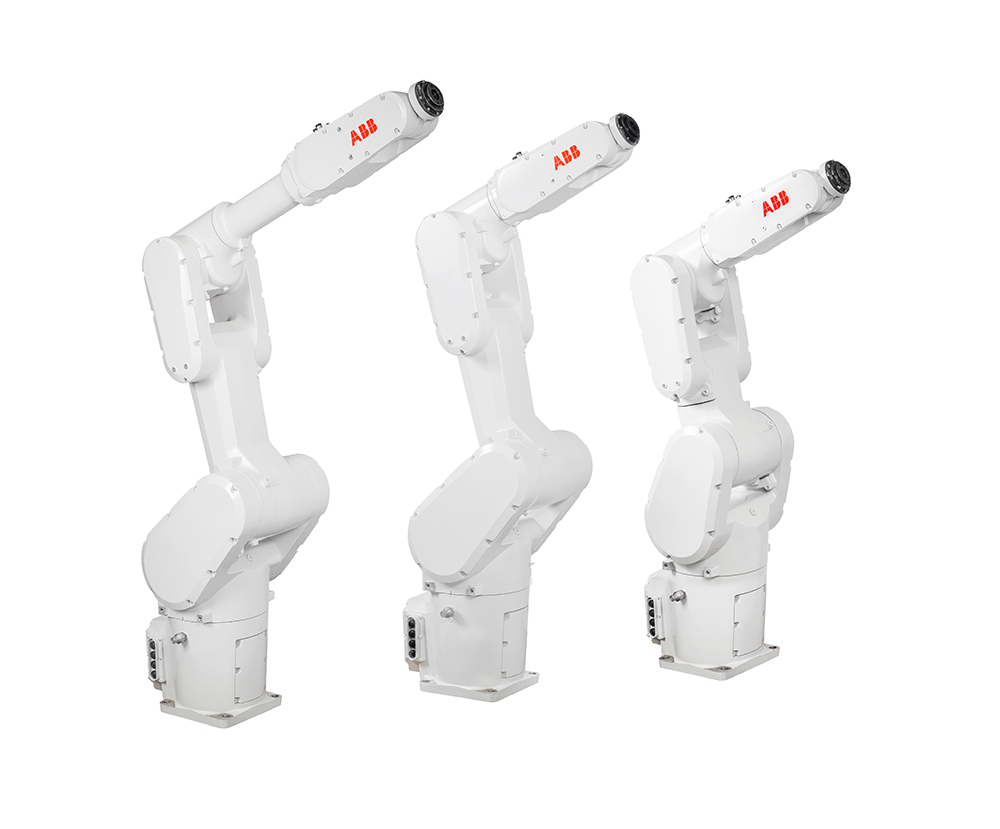

Compact six-axis articulated industrial robot series for applications including material handling, machine tending, polishing, assembly and testing. Variant payload/reach combinations and controller choices are stated as a family rather than as a single configuration.
Specifications
| Product model | IRB 1300 series; variants include 11/0.9, 10/1.15, 7/1.4 and 12/1.4 |
|---|---|
| Robot structure | articulated |
| Number of axes | 6 |
| Payload by variant | 7, 10, 11 or 12 kg |
| Reach by variant | 900, 1,150 or 1,400 mm |
| Controller models | OmniCore E10, C30 or C90XT |
| Ingress protection | IP67 versions available |
| Programming method | graphical (Wizard Easy Programming, pre-installed) |
| Technical extension parameters | ABB states Foundry Plus 2 and Cleanroom ISO 4 versions; armload up to 1 kg; up to 27% shorter cycle times and an 83% smaller footprint. The four listed payload/reach pairs are 11 kg/900 mm, 10 kg/1,150 mm, 7 kg/1,400 mm and 12 kg/1,400 mm. Source: https://www.abb.com/global/en/areas/robotics/sell/robots/articulated-robots/small-robots/irb-1300 |
Specifications
Robot structurearticulated
Number of axes6
Rated payload7, 10, 11 or 12 kg
Maximum reach900, 1,150 or 1,400 mm
Product modelIRB 1300 series; variants include 11/0.9, 10/1.15, 7/1.4 and 12/1.4
Controller modelOmniCore E10, C30 or C90XT
Ingress protectionIP67 versions available
Programming methodgraphical (Wizard Easy Programming, pre-installed)
