Product description

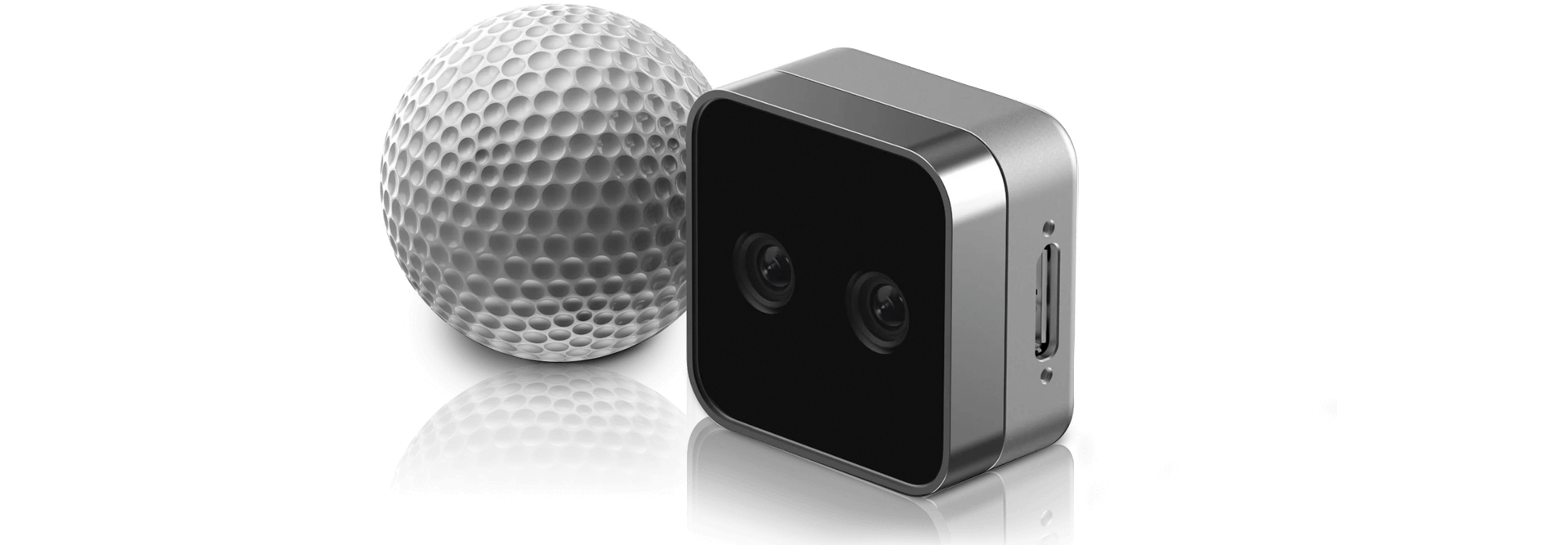

Compact global-shutter stereo depth camera for close-range robotic manipulation, precision positioning, inspection, scanning and measurement.
Specifications
| Product model | D405 |
|---|---|
| Vision type | Stereo depth camera |
| Image sensor | Global shutter; left imager RGB with ISP |
| Resolution | Depth up to 1280 × 720; RGB 1280 × 720 |
| Frame rate | Depth up to 90 fps; RGB 30 fps |
| Field of view | 87° × 58° |
| Working distance | 7 cm to 50 cm ideal range; minimum depth distance 7 cm at 480p |
| Data interface | USB 2 / USB 3.1 |
| Dimensions | 42 × 42 × 23 mm peripheral; 36.5 × 19.4 × 10.5 mm module |
| Technical extension parameters | Stereoscopic depth; depth accuracy ±2% at 50 cm; no IMU; indoor/outdoor use; 1/4-20 UNC and two M3 mounting points; RealSense SDK 2.0 support |
