Product description

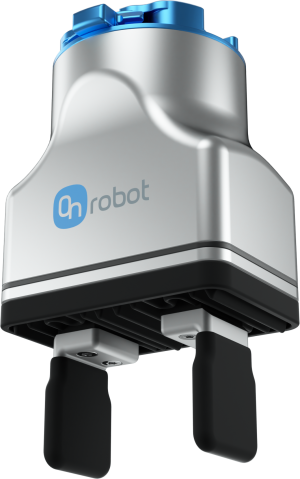

Compact electric parallel gripper for machine tending, material handling and assembly, with adjustable gripping force and speed, IP67 protection and power-loss holding.
Specifications
| Product model | 2FG7 |
|---|---|
| Gripper type | Electric parallel gripper |
| Rated payload | 7 kg force-fit; 11 kg form-fit |
| Grip force | 20–140 N, adjustable |
| Stroke / opening | 38 mm total stroke |
| Repeatability | ±0.1 mm gripping repeatability |
| Ingress protection | IP67 |
| Dimensions | 144 × 90 × 71 mm |
| Weight | 1.1 kg |
| Technical extension parameters | Adjustable grip speed 16–450 mm/s; external gripping range 1–39 mm inward / 35–73 mm outward; integrated force sensor in one finger; power-loss holding; optional ISO Class 5 cleanroom and ESD-safe configuration |
Specifications
Gripper typeElectric parallel gripper
Rated payload7 kg force-fit; 11 kg form-fit
Grip force20–140 N, adjustable
Stroke / opening38 mm total stroke
Product model2FG7
Repeatability±0.1 mm gripping repeatability
Ingress protectionIP67
Dimensions144 × 90 × 71 mm
Weight1.1 kg
Technical extension parametersAdjustable grip speed 16–450 mm/s; external gripping range 1–39 mm inward / 35–73 mm outward; integrated force sensor in one finger; power-loss holding; optional ISO Class 5 cleanroom and ESD-safe configuration
