Product description
The INEXBOT C1103 is an embedded industrial robot controller with an Intel Celeron J1900 processor, independent EtherCAT interface and modular E-BUS I/O expansion. Manufacturer-listed values and interfaces are summarized below.
Specifications
| Controller type | Embedded industrial robot controller |
|---|---|
| CPU model | Intel Celeron J1900, 2.0 GHz, 4 cores / 4 threads |
| Memory | 4 GB DDR3L standard; expandable to 8 GB |
| Storage | 64 GB eMMC; M.2 2242 SATA expansion |
| Digital I/O count | Expandable digital I/O via E-BUS AL-series modules; capacity depends on selected modules |
| Communication protocol | 3× Gigabit Ethernet ports plus one independent EtherCAT OUT RJ45 port |
| Operating system | Windows 7/10, Ubuntu, Debian |

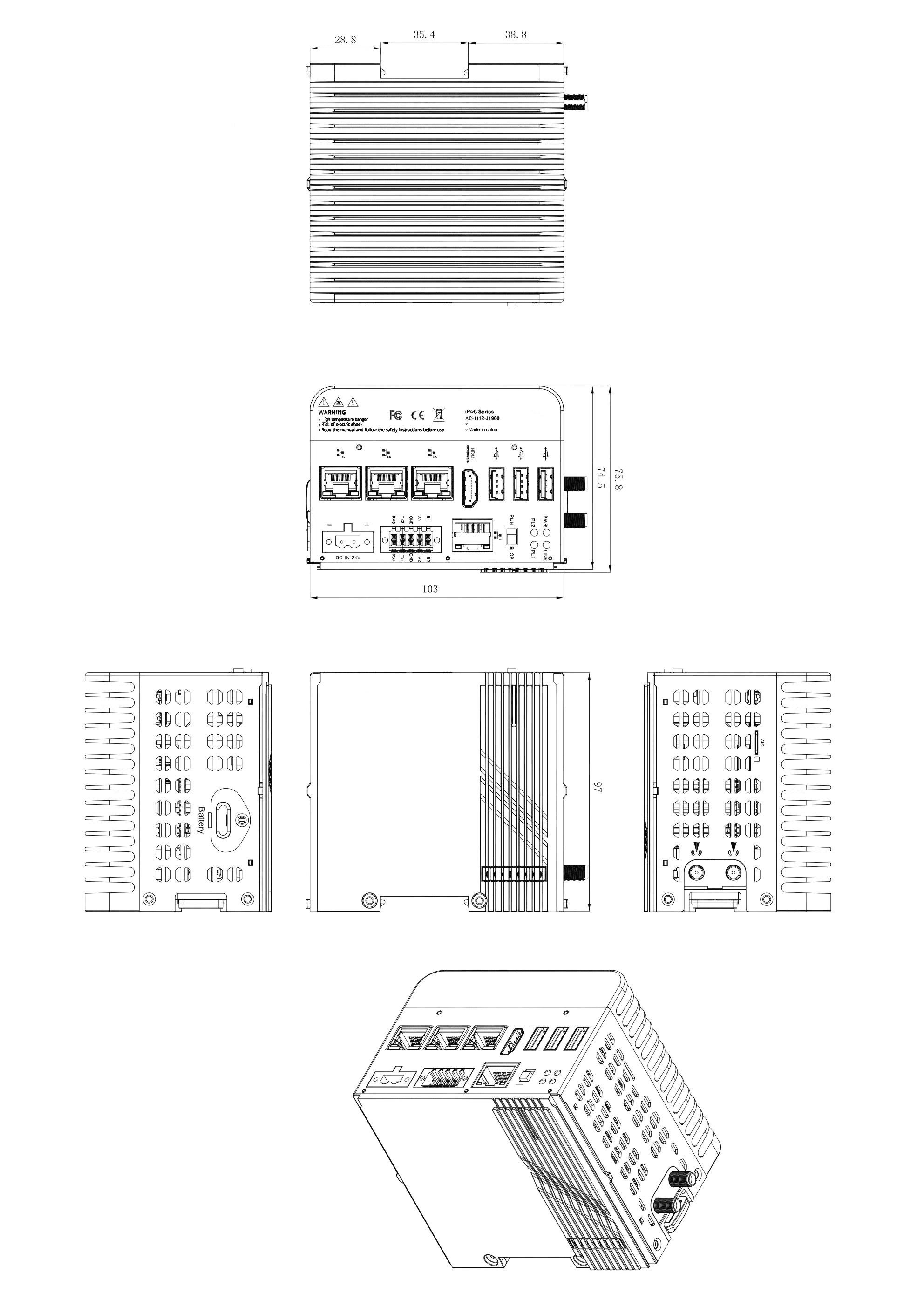

| Dimensions | 103 × 97 × 74.5 mm |
| Weight | 1.5 kg |
| Operating temperature | -20 °C to 60 °C |
| Certification | CE; FCC Class A |
| Controlled axis count | Up to 64 synchronized axes; up to 4 robots |
| Fieldbus | Independent EtherCAT OUT; E-BUS modular expansion |
| Expansion interface | E-BUS, M.2 2242, HDMI, 3×USB 2.0, 2×RS485, 2×RS232 |
| Technical extension parameters | Built-in UPS supercapacitor ≥5 s at full load; DIN-rail IEC 60715 mounting; optional 4G/5G module |
| Product model | C1103 |
Technical extensions
Supports synchronized motion of up to 64 axes and independent control of up to 4 robots. Integrated supercapacitor UPS provides at least 5 seconds of backup at full load. DC 24 V input with overcurrent, overvoltage and reverse-polarity protection. Memory is DDR3L 4 GB standard with SO-DIMM expansion up to 8 GB; storage is 64 GB onboard eMMC plus M.2 2242 SATA expansion. Ethernet: three Gigabit ports and one independent EtherCAT OUT port. E-BUS accepts AL-series digital, analog, temperature and encoder I/O modules. Serial ports: 2×RS485 and 2×RS232; HDMI 1920×1080@60Hz; 3×USB 2.0. DIN-rail IEC 60715 mounting; operating temperature −20 to 60 °C; storage −40 to 80 °C; 95% humidity, 3 Grms vibration and 30 G shock. Windows 7/10, Ubuntu and Debian are listed operating systems.
Official product images
